HSB-006-F

Model：HSB-006-F

Item No：HSB-006-F

Location：Female Inserts

Introduction：HSB Series | Heavy-Current Inserts | HSB-006-F

Product Certification：UL | CE | RoHS | CQC

Suitable Shell

Product Details

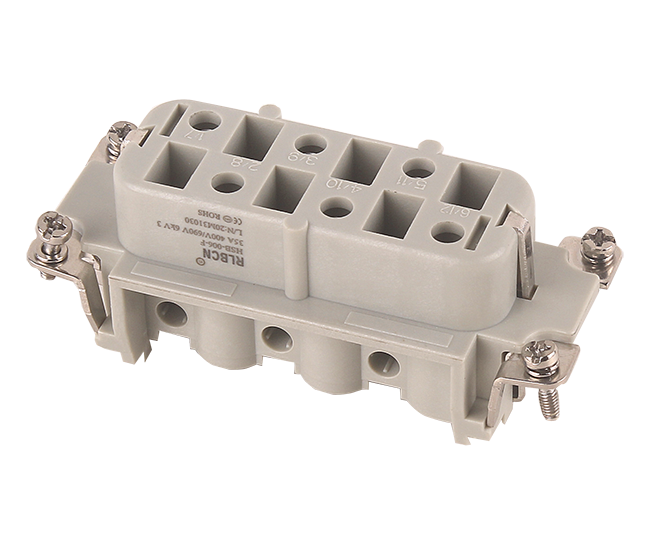

HSB Series | Heavy-Current Inserts HSB-006-F
Number of  Contacts 6+PE
Rated Current 35A
Rated Voltage 400/690V
Rated Impulse Voltage 6KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contacts HSB-006-F
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤1mΩ
Terminal Crimp Terminal
Wire Gauge 4.0~6.0mm2 (AWG 12-10)
Hoods/Housings H16B
