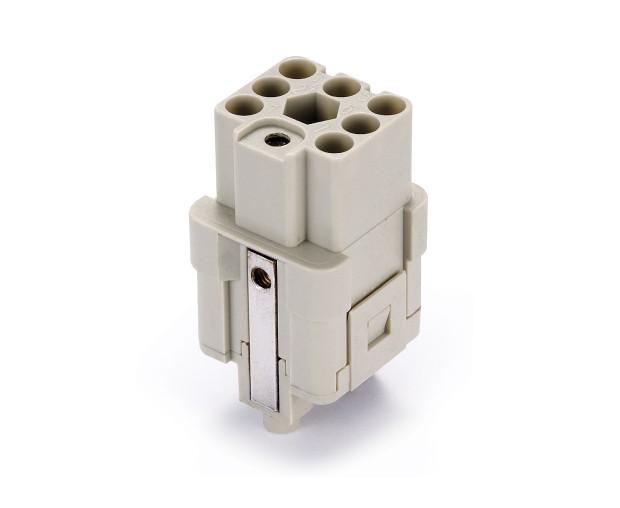

HQ-007-FC > RLBCN Connector

Model：HQ-007-FC

Item No：HQ-007-FC

Location：Female Inserts

Introduction：HQ Series | HQ-007-FC

Product Certification：UL | CE | RoHS | CQC

HQ Series \| Compact Inserts	HQ-007-FC
Number of Contacts	7+PE
Rated Current	10A
Rated Voltage	400V
Rated Impulse Voltage	6KV
Pollution degree	3
Insulation Resistance	≥1010Ω
Pollution degree 2 also	10A 400/690V 6kV 2
Material	Polycarbonate
Flammability acc.to UL94	V0
Limiting Temperatures	-40℃~+125℃
Mechanical Working Life-mating Cycles	≥500
Contacts	HQ-007-FC
Material	Copper Alloy
Surface	Hard Gold Plated \| Hard Silver Plated
Contact Resistance	≤3mΩ
Terminal	Crimp Terminal
Wire Gauge	0.14~2.5mm2 (AWG 26-14)
Hoods/Housings	H3A
Cripmp Contacts	10A
