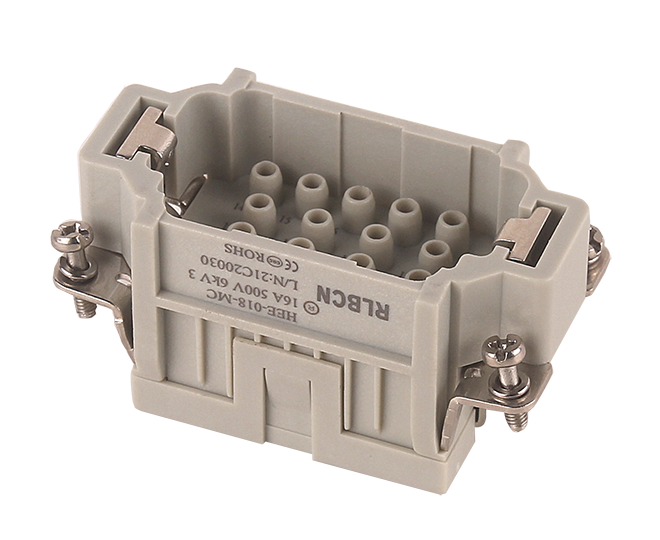

HEE-018-MC

Model：HEE-018-MC

Item No：HEE-018-MC

Location：Male Inserts

Introduction：HEE Series | High-density Connectors Inserts | HEE-018-MC

Product Certification：UL| CE | RoHS | CQC

Suitable Shell

Product Details

HEE Series | High-density Connectors HEE-018-MC
Number of  Contacts 18
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contacts HEE-018-MC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤1mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~4.0mm2 (AWG 26-14)
Tightening Torque 7.5mm
Hoods/Housings H10B
Cripmp Contacts 16A
