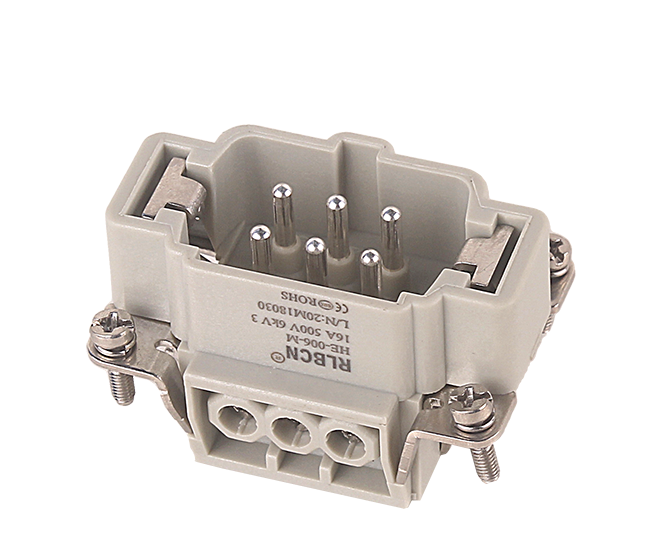

HE-006-M

Model:HE-006-M

Item No:HE-006-M

Location:Male Inserts

Introduction:Connector Insert HE-006-M

Product Certification:UL| CE | RoHS | CQC

Suitable Shell

Product Details

HE Series Standard Inserts  HE-006-M
No. of  Contact 6
Rated Current 16A
Rated Voltage 500V
Rated Impulse Voltage 6KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance 1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40~+125
Mechanical Working Life-mating Cycles 500
Contact  HE-006-M
Material Copper Alloy
Surface Silver plated
Contact Resistance 1mΩ
Wire Gauge 1.0-2.5mm2                                  (AWG18-14)
Tightening Torque 0.5N·m
Stripping Length 7.0mm
Hoods/Housings H6B
