HDD-042-FC

Model：HDD-042-FC

Item No：HDD-042-FC

Location：Female Inserts

Introduction：HDD Series | Ultra High-Density Inserts | HDD-042-FC

Product Certification：UL | CE | RoHS | CQC

Suitable Shell

Product Details

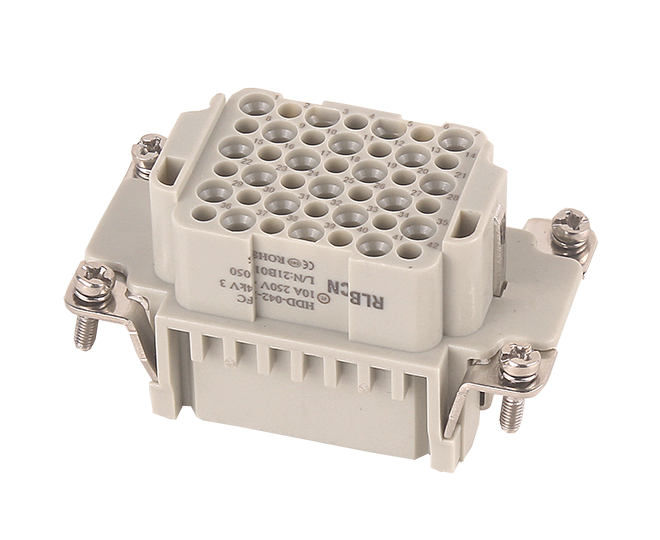

HDD Series | Ultra High-Density Inserts HDD-042-FC
Number of  Contacts 42+PE
Rated Current 10A
Rated Voltage 250V
Rated Impulse Voltage 4KV
Pollution degree  3
Pollution degree 2 also 10A 230/400V 4kV 2
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contacts HDD-042-FC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤3mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~2.5mm2 (AWG 26-14)
Hoods/Housings H10B
Cripmp Contacts 10A
