HDD-024-MC

Model：HDD-024-MC

Item No：HDD-024-MC

Location：Male Inserts

Introduction：HDD Series | Ultra High-Density Inserts | HDD-024-MC

Product Certification：UL | CE | RoHS | CQC

Suitable Shell

Product Details

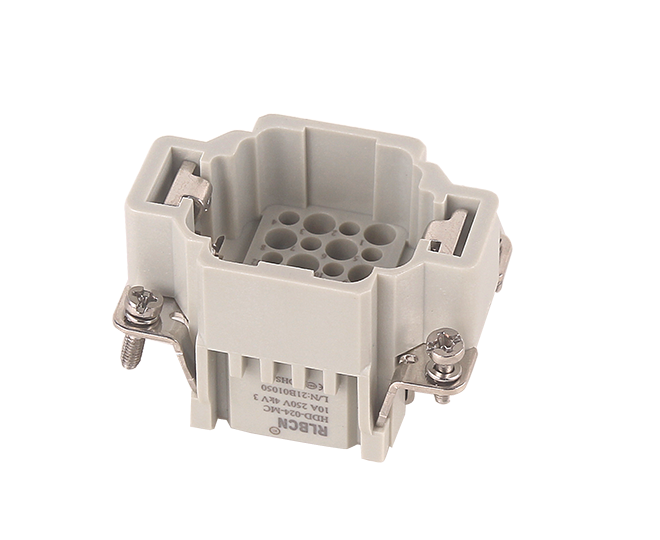

HDD Series | Ultra High-Density Inserts HDD-024-MC
Number of  Contacts 24+PE
Rated Current 10A
Rated Voltage 250V
Rated Impulse Voltage 4KV
Pollution degree  3
Pollution degree 2 also 10A 230/400V 4kV 2
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contacts HDD-024-MC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤3mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~2.5mm2 (AWG 26-14)
Hoods/Housings H6B
Cripmp Contacts 10A
