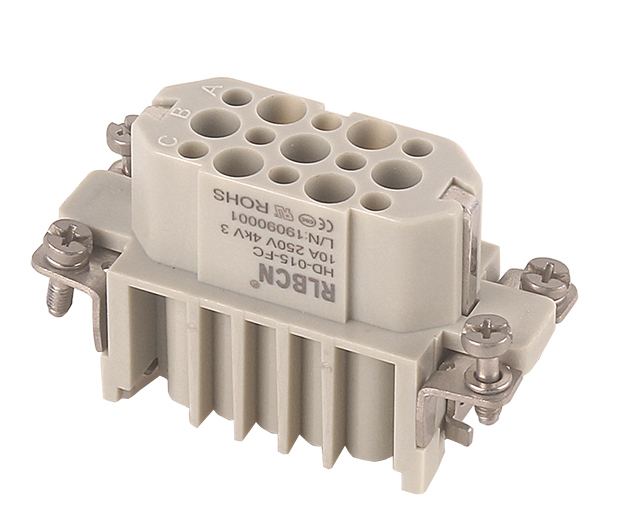

HD-015-FC

Model：HD-015-FC

Item No：HD-015-FC

Location：Female Inserts

Introduction：HD Series | Ultra High-Density Inserts | HD-015-FC

Product Certification：UL | CE | RoHS | CQC

Suitable Shell

Product Details

HD Series | Ultra High-Density Inserts HD-015-FC
Number of  Contacts 15
Electrical data acc. to EN 61 984
Rated Current 10A
Rated Voltage 250V
Rated Impulse Voltage 4KV
Pollution degree  3
Pollution degree 2 also 10A 230/400V 4kV 2
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contacts HD-015-FC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤3mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~4.0mm2 (AWG 26-14)
Hoods/Housings H10A
Cripmp Contacts 10A
