Item No:HD-007-FC

Location:Female Inserts

Introduction:HD Series | Ultra High-Density Inserts | HD-007-FC

Product Certification:UL | CE | RoHS | CQC

Suitable Shell

Product Details

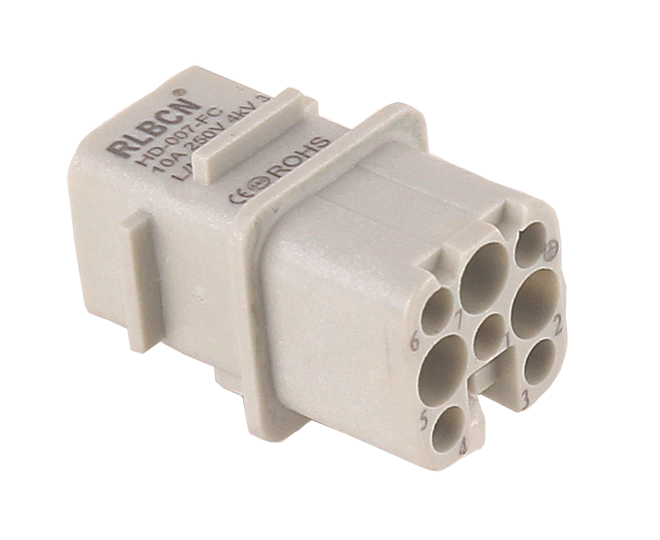

HD Series | Ultra High-Density Inserts HD-007-FC
Number of  Contacts 7
Electrical data acc. to EN 61 984
Rated Current 10A
Rated Voltage 250V
Rated Impulse Voltage 4KV
Pollution degree  3
Pollution degree 2 also 10A 230/400V 4kV 2
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance 1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40~+125
Mechanical Working Life-mating Cycles 500
Contacts HD-007-FC
Material Copper Alloy
Surface Hard Gold Plated | Hard Silver Plated
Contact Resistance ≤3mΩ
Terminal Crimp Terminal
Wire Gauge 0.14~2.5mm2 (AWG 26-14)
Hoods/Housings H3A
Cripmp Contacts 10A
