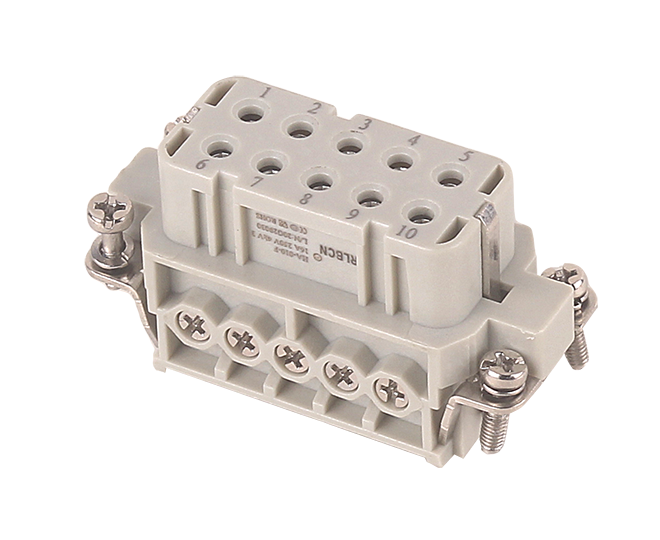

HA-010-F

Model：HA-010-F

Item No：HA-010-f

Location：Female Inserts

Introduction：Connector Inserts HA-010-F

Product Certification：UL| CE | RoHS | CQC

Suitable Shell

Product Details

Inserts - HA core series  HA-010-F
No. of  Contact 10+PE
Rated Current 16A
Rated Voltage 250V
Rated Impulse Voltage 4KV
Pollution degree  3
Rated Voltage Acc. to Ul CSA 600V
Insulation Resistance ≥1010Ω
Material Polycarbonate
Flammability acc.to UL94 V0
Limiting Temperatures -40℃~+125℃
Mechanical Working Life-mating Cycles ≥500
Contact  HA-010-F
Material Copper Alloy
Surface Silver plated
Contact Resistance ≤1mΩ
Wire Gauge 1.0-2.5mm2(AWG18-14)
Tightening Torque 0.5N·m
Hoods/Housings H10A
